SEMI GANTRY EOT CRANE
Capacity: 5 Ton To 100 Ton (Customizable)
Shiva Cranes Pvt. Ltd., based in Vatva, Ahmedabad, Gujarat (India), is a leading manufacturer of heavy-duty Semi Gantry Double Girder EOT Cranes designed for efficient material handling in areas where full gantry installation is not feasible. With over 35 years of industry expertise, we provide robust and customized lifting solutions for demanding industrial environments.
Product Overview

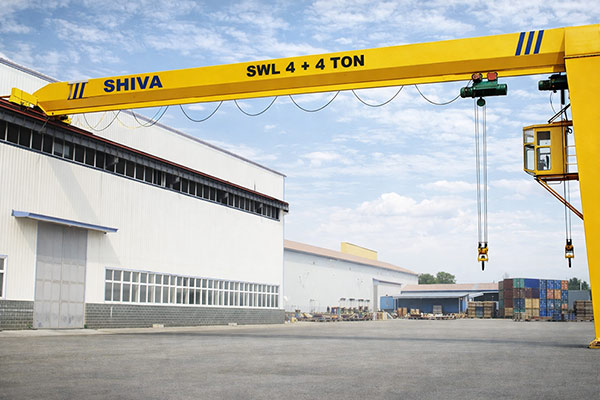

A Semi Gantry Double Girder EOT Crane combines the features of an overhead crane and a gantry crane. One side of the crane runs on an elevated runway beam attached to the building structure, while the other side is supported by a ground-mounted leg traveling on rail tracks. This design makes it ideal for areas where one side of the workspace lacks structural support. The double girder configuration allows for higher load capacities, increased lift height, and improved stability for heavy-duty operations.
Key Features
- Heavy-duty double girder box-type construction
- One-sided ground support with rigid gantry leg
- High load-bearing capacity
- Smooth cross travel and long travel mechanisms
- Wire rope hoist or open winch trolley arrangement
- Precision-machined wheels and hardened shafts
- Advanced electrical panel with safety interlocks
- Cabin-operated / Pendant / Radio remote options
Technical Specifications
Capacity: 5 Ton to 100 Ton (Customizable)
Span: As per site requirement
Lift Height: Customized
Duty Class: Class I, II, III
Power Supply: 3 Phase, 415 V, 50 Hz
Structure: IS-standard fabricated girders
Applications
Steel and Rolling Mills
Fabrication Units
Infrastructure Projects
Cement Plants
Heavy Engineering Industries
Outdoor and Partially Covered
Quality Assurance
At Shiva Cranes Pvt. Ltd., every Semi Gantry Double Girder EOT Crane undergoes stringent quality checks and load testing before dispatch. Our cranes are designed for durability, safety, and long service life, ensuring reliable performance even in challenging industrial conditions.
